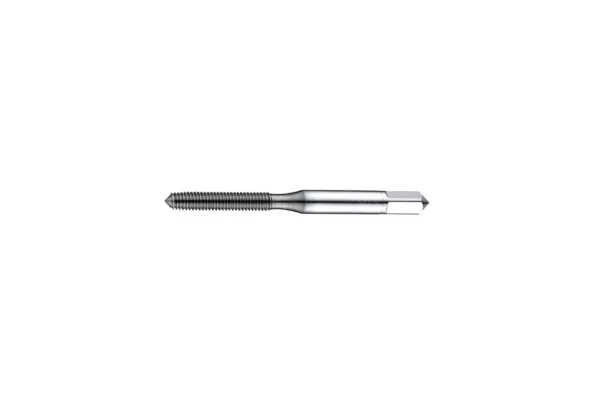

美制粉末擠壓絲攻-長牙 | 有信企業有限公司

美制粉末擠壓絲攻-長牙

商品簡述：

P:通孔用倒牙:4山
B:盲孔用倒牙:2山

左右滑動看表格

規格 SIZE	精度 SR	倒牙 LC	形狀 TYPE	全長 L1	牙長 L2	柄徑 ds
NO. 0-80UNF	4	P	1	36	7	3
NO. 0-80UNF	4	B
NO. 0-80UNF	5	P
NO. 0-80UNF	5	B
NO. 1-64UNC	4	P	1	36	8	3
NO. 1-64UNC	4	B
NO. 1-64UNC	5	P
NO. 1-64UNC	5	B
NO. 1-72UNF	4	P	1	36	8	3
NO. 1-72UNF	4	B
NO. 1-72UNF	5	P
NO. 1-72UNF	5	B
NO. 2-56UNC	4	P	1	42	11	3
NO. 2-56UNC	4	B	1	42	11	3
NO. 4-40UNC	5	P	1	44	12	3
NO. 4-40UNC	5	B
NO. 4-40UNC	6	P
NO. 4-40UNC	6	B
NO. 6-32UNC	5	P	2	48	18	4
NO. 6-32UNC	5	B
NO. 6-32UNC	6	P
NO. 6-32UNC	6	B
NO. 6-32UNC	7	P
NO. 6-32UNC	7	B
NO. 8-32UNC	5	P	2	52	20	5
NO. 8-32UNC	5	B
NO. 8-32UNC	6	P
NO. 8-32UNC	6	B
NO. 10-24UNC	7	P	2	60	22	5.5
NO. 10-24UNC	7	B	2	60	22	5.5
NO. 10-32UNF	7	P	2	60	22	5.5
NO. 10-32UNF	7	B	2	60	22	5.5
1/4-20UNC	6	P	2	62	24	6
1/4-20UNC	6	B
1/4-20UNC	7	P
1/4-20UNC	7	B
1/4-28UNF	5	P	2	62	24	6
1/4-28UNF	5	B
1/4-28UNF	7	P
1/4-28UNF	7	B
