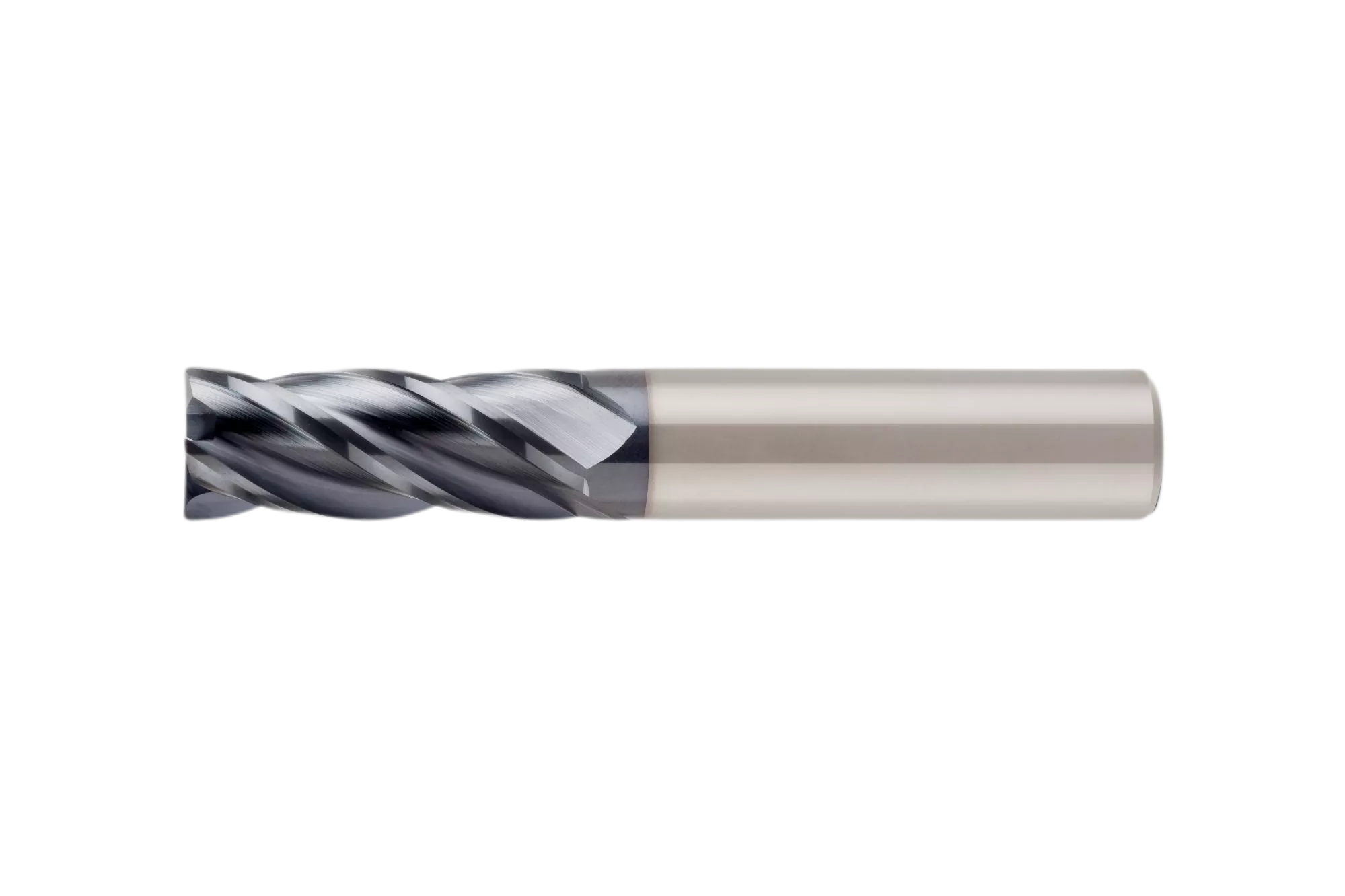

Carbide End Mills-Standard-4 Flutes-35°
Merchandise number：354AL
| 型號 Order No. |
刃徑 (D) |
刃長 (ℓ) |
柄徑 (d) |
全長 (L) |
刃數 Flutes |
| 354AL-010 | 1 | 3 | 3/4/6 | 50 | 4 |
| 354AL-015 | 1.5 | 4.5 | 3/4/6 | 50 | 4 |
| 354AL-020 | 2 | 6 | 3/4/6 | 50 | 4 |
| 354AL-025 | 2.5 | 7 | 4/6 | 50 | 4 |
| 354AL-030 | 3 | 9 | 3/4/6 | 50 | 4 |
| 354AL-035 | 3.5 | 12 | 4/6 | 50 | 4 |
| 354AL-040 | 4 | 12 | 4/6 | 50 | 4 |
| 354AL-045 | 4.5 | 13 | 6 | 50 | 4 |
| 354AL-050 | 5 | 14 | 5/6 | 50 | 4 |
| 354AL-055 | 5.5 | 16 | 6 | 50 | 4 |
| 354AL-060 | 6 | 16 | 6 | 50 | 4 |
| 354AL-065 | 6.5 | 20 | 8 | 60 | 4 |
| 354AL-070 | 7 | 20 | 8 | 60 | 4 |
| 354AL-075 | 7.5 | 20 | 8 | 60 | 4 |
| 354AL-080 | 8 | 20 | 8 | 60 | 4 |
| 354AL-085 | 8.5 | 25 | 10 | 75 | 4 |
| 354AL-090 | 9 | 25 | 10 | 75 | 4 |
| 354AL-095 | 9.5 | 25 | 10 | 75 | 4 |
| 354AL-100 | 10 | 25/30 | 10 | 75 | 4 |
| 354AL-105 | 10.5 | 30 | 12 | 75 | 4 |
| 354AL-110 | 11 | 30 | 12 | 75 | 4 |
| 354AL-120 | 12 | 30/36 | 12 | 75 | 4 |
| 354AL-160 | 16 | 40 | 16 | 100 | 4 |
| 354AL-200 | 20 | 45 | 20 | 100 | 4 |
